A new furnace should be the end of your heating problems, not the start of new ones. In this San Jose home, a brand-new high-efficiency furnace had been installed by a general contractor only a few weeks before the homeowner called us. Every time the heat came on, the furnace ran for 5 to 10 minutes, overheated and shut itself off.
This post walks through what we found, why it happened, and what you can check if your own new furnace keeps shutting off.
The problem: a new furnace that kept overheating
The pattern was always the same. The thermostat called for heat, the burners lit, the blower started, and a few minutes later the furnace shut down on an overheat. After a while it would try again, and the cycle repeated. The house never got properly warm.
The homeowner called the contractor who installed the system. They came out, looked it over and said everything was fine. The furnace kept shutting off anyway, so the homeowner called HAXX for a second opinion.
What we found in the attic

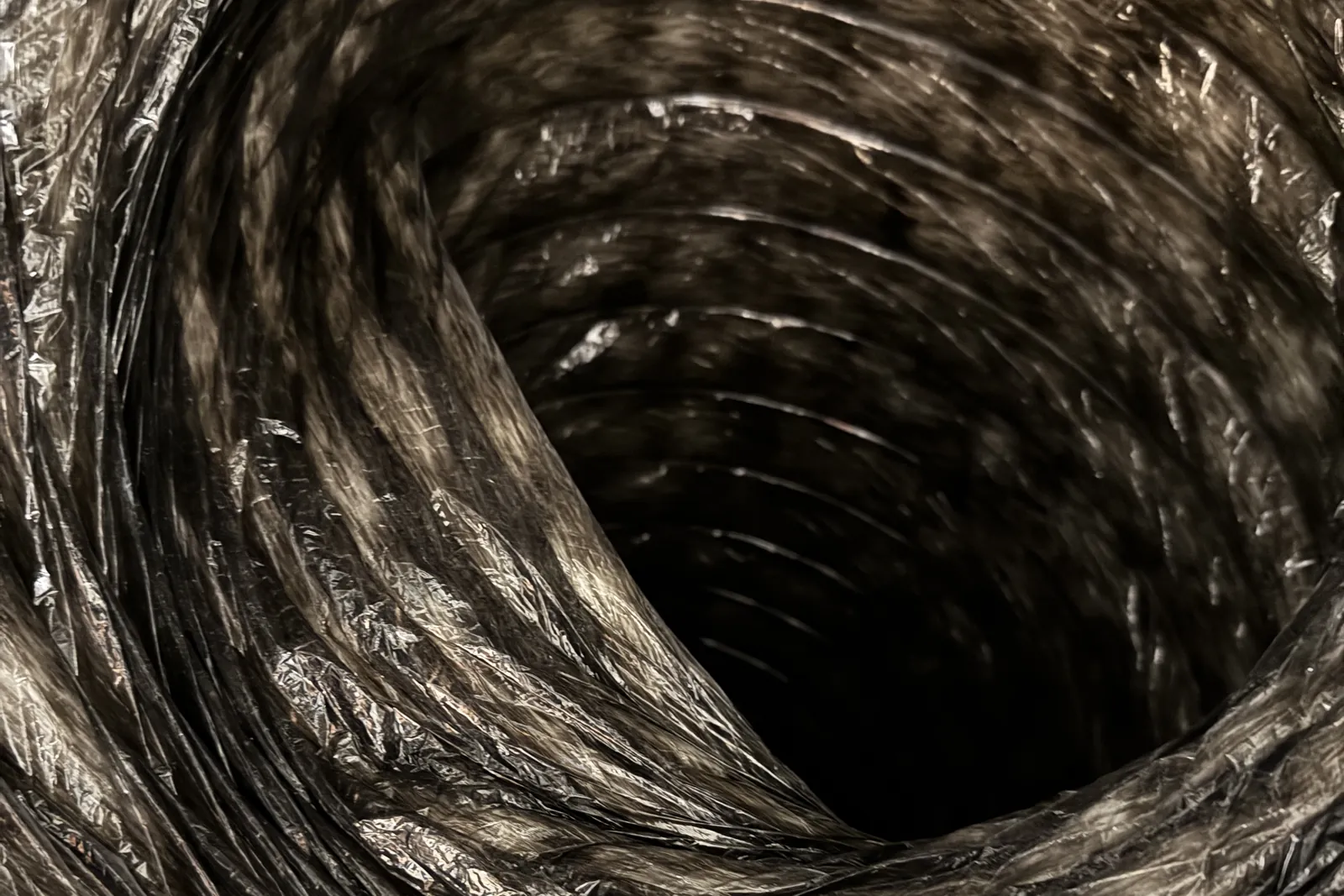

A furnace that overheats on a short cycle is almost always telling you it isn’t getting enough air. So after checking the furnace itself, we followed the return duct, the large duct that brings air from the house back into the furnace to be heated.
We found two problems:
- The return was undersized. It was not large enough for the amount of air this furnace is designed to move.

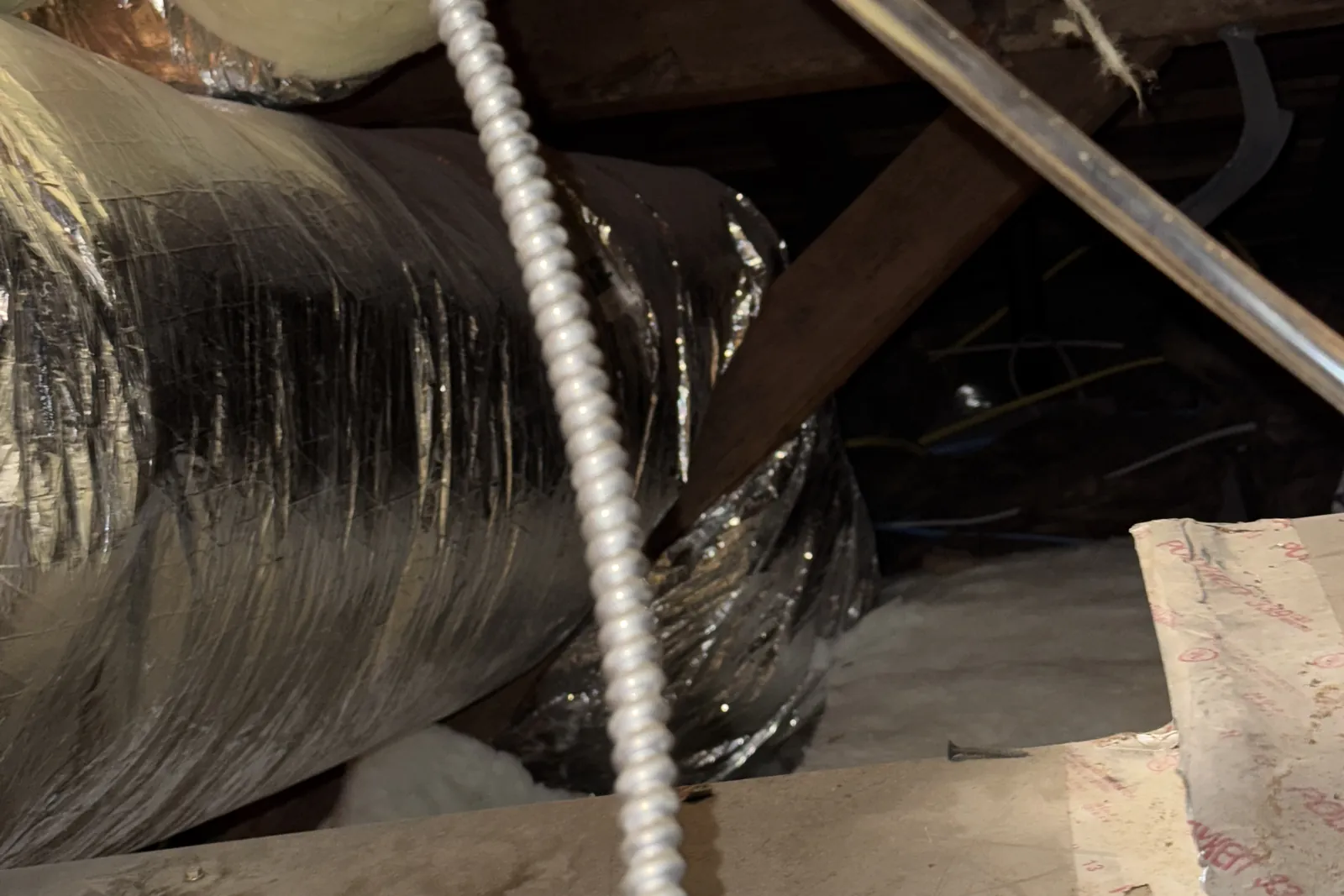

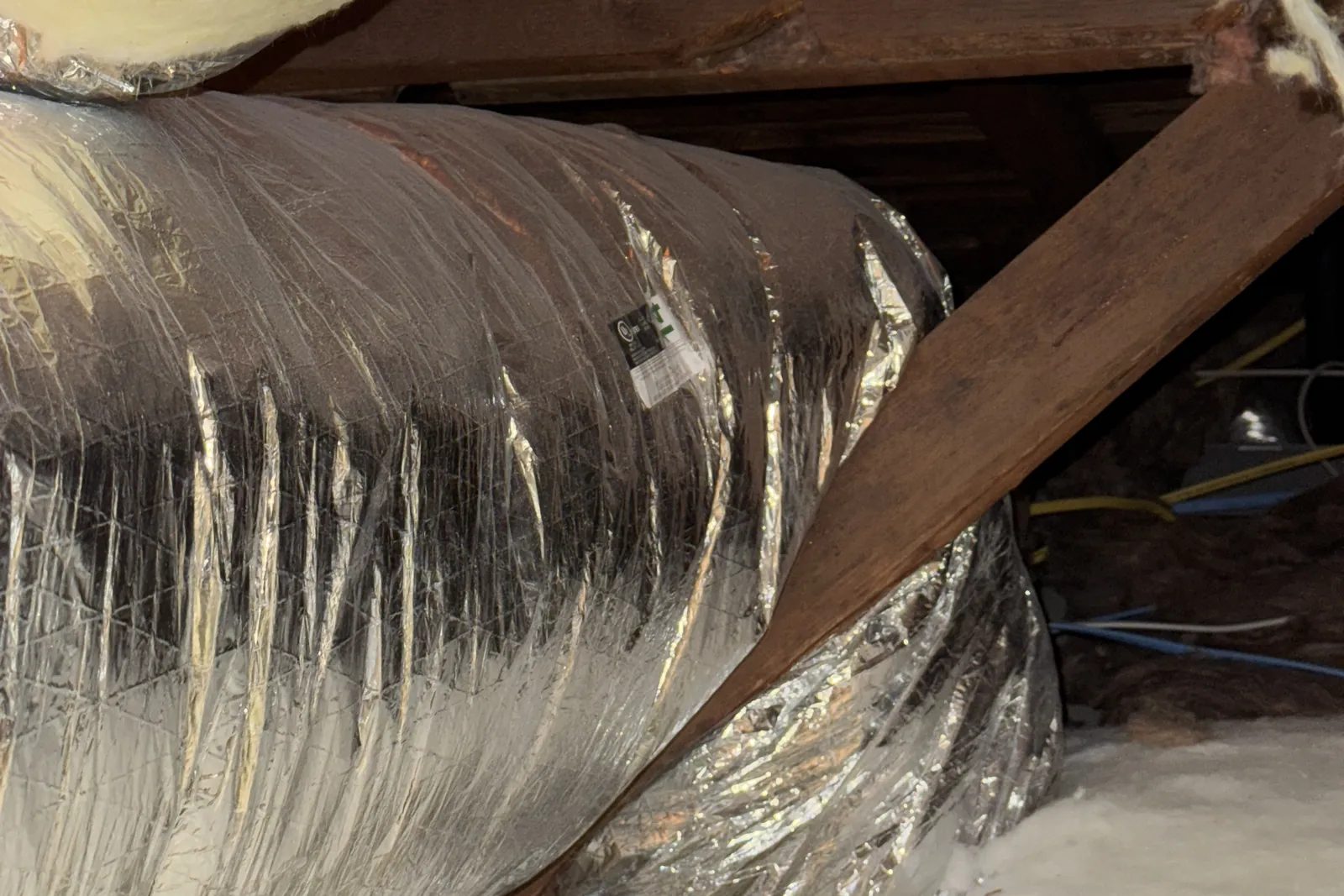

- The duct was lying directly on an attic cross brace. The flexible duct was draped over a piece of the roof framing, which squeezed it and made it even harder for air to pass through.
Each problem on its own reduces airflow. Together, they starved the new furnace of the air it needed.
Why a restricted return makes a furnace shut off
A gas furnace heats air by blowing it across a hot heat exchanger. The blower has to move a certain amount of air to carry that heat away into the house. When the return is too small or pinched, less air moves across the heat exchanger, and the temperature inside the furnace climbs fast.
Every furnace has a high-limit safety switch for exactly this situation. When the inside of the furnace gets too hot, the switch shuts the burners off to protect the equipment and the home. Once things cool down, the furnace tries again, overheats again, and shuts off again. That is the 5-to-10-minute cycle this homeowner was living with.
This is not just an annoyance. Running a furnace hot over and over puts extra stress on the heat exchanger and other parts, and many modern furnaces will lock themselves out completely after repeated limit trips. A high-efficiency furnace is only efficient when the ductwork around it lets it breathe.
What a fix like this involves
The furnace was not the problem, so replacing parts on it would not have helped. Correcting this kind of issue means fixing the airflow: sizing the return for the furnace and supporting the duct so it runs freely instead of resting on the framing. After that, a technician should confirm the system is running within the manufacturer’s specifications, for example by checking the temperature rise across the furnace.
The lesson is simple: a new furnace is only as good as the installation around it. The ductwork, the return size and the way each duct is supported matter as much as the equipment itself.
Furnace shutting off in San Jose? HAXX diagnoses heating systems from the thermostat to the ductwork. See our furnace repair service in San Jose or learn more about gas furnace repair.
Tips for homeowners with a new furnace
- Watch how long it runs. A furnace that shuts off after a few minutes and then restarts on its own is a warning sign, especially if the house never reaches the set temperature.
- Check the simple things first. Make sure the filter is clean and the right size, and that return grilles and supply registers are not blocked by furniture or rugs.
- Ask about airflow, not just the equipment. When a new system is installed, ask whether the return and supply ducts were sized for the new furnace and whether airflow was checked at startup.
- Don’t accept “everything looks fine” if it isn’t working. If the symptoms continue, a second opinion that looks at the whole system, including the attic ductwork, can find what a quick look misses.
Frequently asked questions
Why does my new furnace shut off after a few minutes?
One of the most common causes is restricted airflow. A dirty filter, blocked vents, an undersized return or a crushed or pinched duct can make the furnace overheat, and its safety switch then shuts the burners off.
Is it dangerous if my furnace keeps overheating?
The safety switch is doing its job by shutting the furnace off. But repeated overheating puts extra stress on the heat exchanger and other parts, so it should be diagnosed rather than ignored.
Can the ductwork be the problem even if the furnace is brand new?
Yes. In this San Jose home the furnace was new, but the return duct was too small and was resting on an attic cross brace. The equipment can only perform as well as the ductwork lets it.
